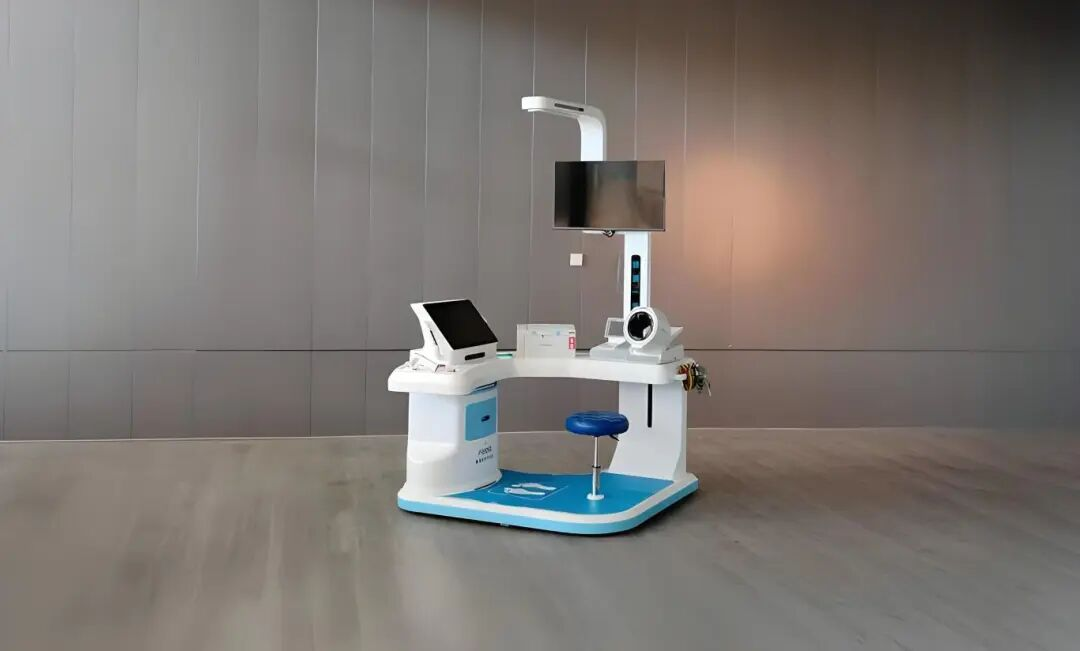

The health screening kiosk is a comprehensive medical device integrating multiple diagnostic modules, AI data analytics, and IoT technologies. It incorporates functions such as camera capture, ID card reading, human-machine interaction, and voice announcement, enabling a one-stop, rapid basic yet thorough health assessment. Test data can be uploaded via network to medical platforms, allowing remote access and querying of electronic health records.
he Qiyang RK3568 SoM, featuring a quad-core ARM Cortex-A55 architecture clocked at up to 2.0 GHz and supporting the Android OS, delivers robust data processing capabilities and a stable operating environment for health screening devices. Its abundant I/O resources facilitate rapid integration of various peripherals and flexible functional expansion.
The integrated 1 TOPS NPU enables on-device execution of lightweight medical AI models for ECG anomaly detection, blood oxygen/blood pressure trend analysis, and AI-assisted interpretation without relying on the cloud, effectively safeguarding the privacy of health screening data.
Support for MIPI-DSI, LVDS, eDP, and HDMI display interfaces, with triple-screen independent output capability, allows the main screen to serve as the control interface while secondary screens display testing guidance, enhancing usability and self-service efficiency.

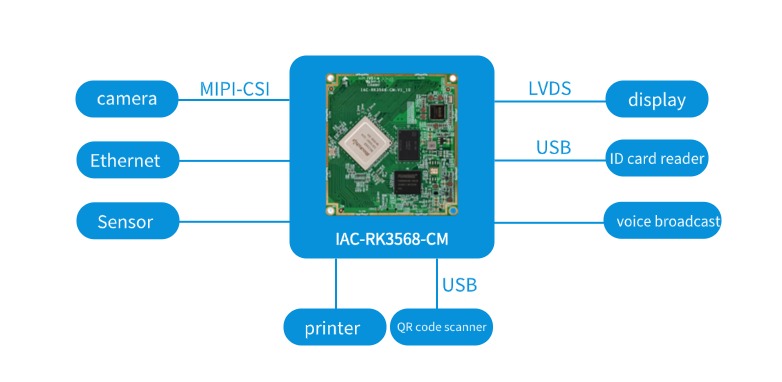

Onboard MIPI-CSI, USB, CAN, UART, RS232, and RS485 interfaces enable connection to peripherals such as cameras, sensors, printers, barcode scanners, and ID card readers, facilitating rapid functional integration.
The SoM supports dual Gigabit Ethernet, dual-band Wi-Fi, and Bluetooth 5.0, with optional 4G/5G module expansion. This enables health data upload to HIS/LIS systems and interconnects multiple devices, meeting the data transmission, device coordination, and information management needs of hospitals, physical examination centers, and other medical environments.
The 2GB LPDDR4 + 8GB eMMC configuration provides stable operational support and data storage capacity, with optional memory configurations available upon request.
