Qiyang intelligent play extraordinary hardware and software development strength, provides vending machine industry based on ARM architecture with Android system hardware solutions, customers can develop according to the underlying software, remote operation and maintenance management, management background can display each region each site of the goods, centralized area replenishment, At the same time, the cloud can also analyze the consumption trend of the region with big data for targeted stock. On the basis of traditional vending machines, intelligent vending machines can increase advertising operation, game interaction, big data management, effectively improve operation efficiency and reduce operating costs.
Case Introduction

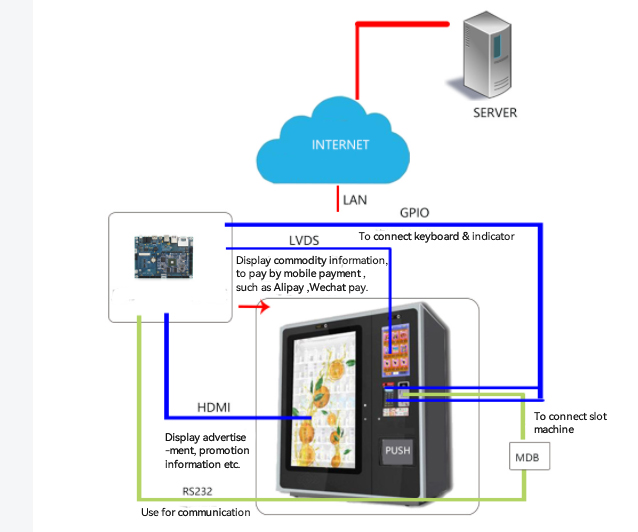

The solution integrates vending machine communication, control and display functions into one, realizing intelligent functions such as advertisement displaying, touch-screen selection, mobile payment and remote management.

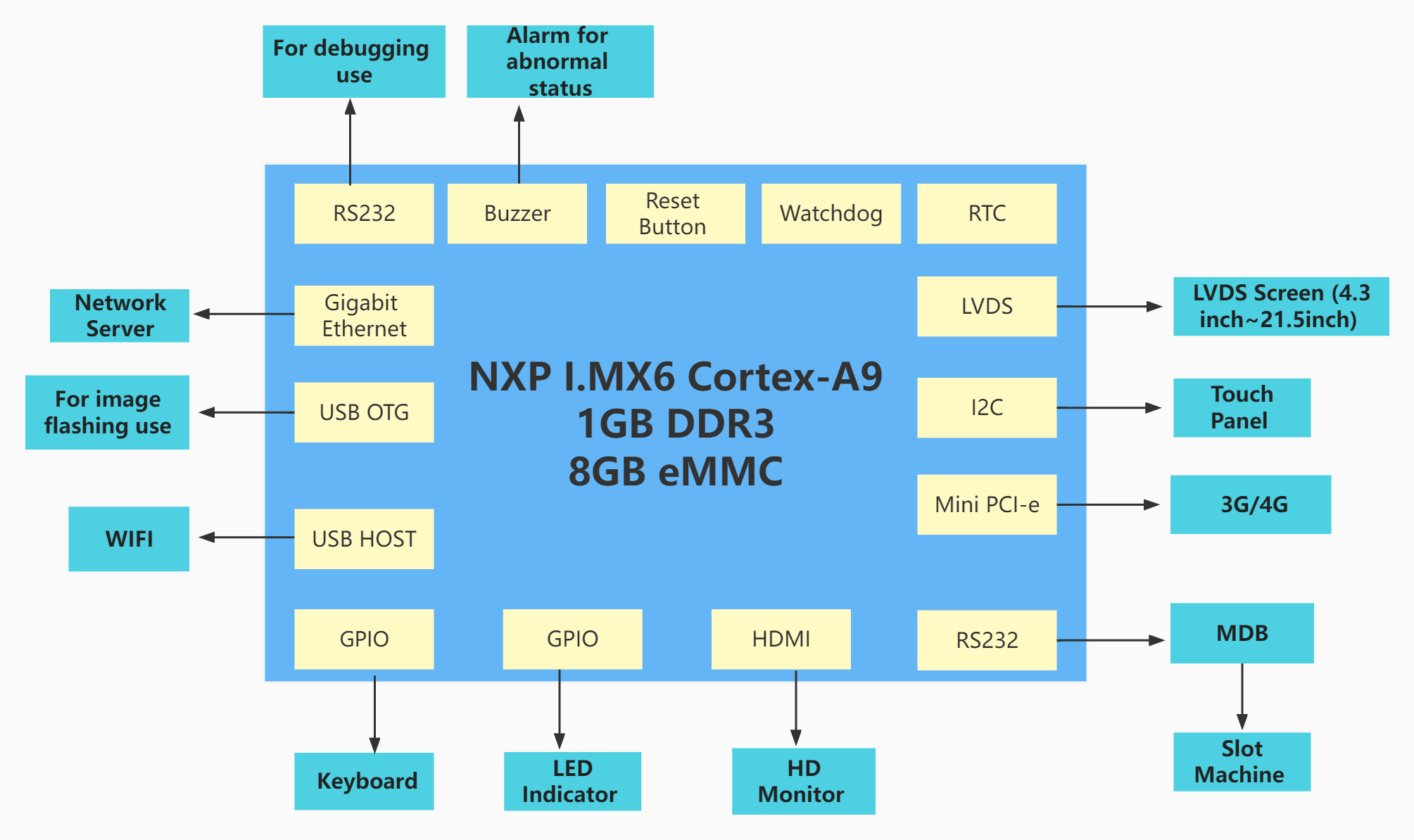

Technical Parameters
|
Case Name |
Smart Vending Machine |
|
CPU |
Freescale i.mx6 ARM Cortex-A9 |
|
Frequency |
1.0GHz |
|
RAM |
1GB DDR3 SDRAM |
|
FLASH |
4GB EMMC |
|
Communication Interface |
2-ch RS232,including 1-ch Debug UART,1-ch communication; 1-ch Gigabit Ethernet; 2-ch USB,including USB 2.0 Host,1-ch to connect WIFI; 1-ch mini PCI-E, to connect 3G/4G module; |
|
Display |
1-ch LVDS, to connect 4.3 inch~21.5 inch capacitive touch panel; 1-ch HDMI, to connect HD monitor; |
|
I2C |
Capacitive touch panel |
|
IO |
Multiple, to connect indicator, keyboard,etc. |
|
Buzzer |
Alarm for abnormal status |
|
Real-time clock |
RTC |
|
Software System |
Android 4.4 |
|
Reset Button |
|
|
Watchdog Circuit |
|
|
Operational Temperature& Humidity |
Humidity:5%~95%,non-condensation; Operation Temperature: -20℃~+70℃, -40℃~+85℃（Optional） |
Tips: I.MX6 is scalable for multiple RS232/RS485
- All interfaces are available, includes UART, Network, Audio, USB,4G,WI-FI,HDMI .
- It supports 1080P dual screen with asynchronous display, main screen could display gorgeous advertisements, to bring benefit for the operator, secondary screen show the commodity information and settlement information, it supports various mobile payment methods ,such as Wechat pay, Alipay, Baidu Pay,etc.
- Integrated with communication, control, display;
- Selling data, machine status, inventory situation, fault information will be reported to the background management system, the platform could control the vending machine status at any time, decrease faults.
- Operate Android OS, ultrastrong multi-media and human interaction experience.
- The vending machine based on RK3288 could serve ads by facial recognition technology based on consumer age, sexuality, and other attribution.
- Consumers could select the products quickly base on their purchase preference, the operator could provide accurate promotion.
RK3288 Characteristics
- ARM Cortex-A17 Quad Core processor, 1.8Ghz;-- performance is improved by 60% than Cortex-A9.
- Mali-T764 GPU, support AFBC, OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3;---performance is 500% improved than Mali-400MP4.
- 4K video hardware decoding and output, support dual screen asynchronous display;---4KX2K hardware decoding H.265 video chipset;
- Rich peripheral interface;---HDMI,Ethernet MAC,S/PDIF,USB,I2C ,etc.
- Support multiple display, pixel reach up to 3840*2160;---Bring clear visual experience;
- Ultra-large capacity—Equipped with 2G DDR3, 8GB/16GB high speed storage;
- With strong communication;--1*UART,2*USB,1*OTG,1*Gigabit,1*VGA,1*HDMI,1*BT&WIFI etc.
- Support Android 5.1.
