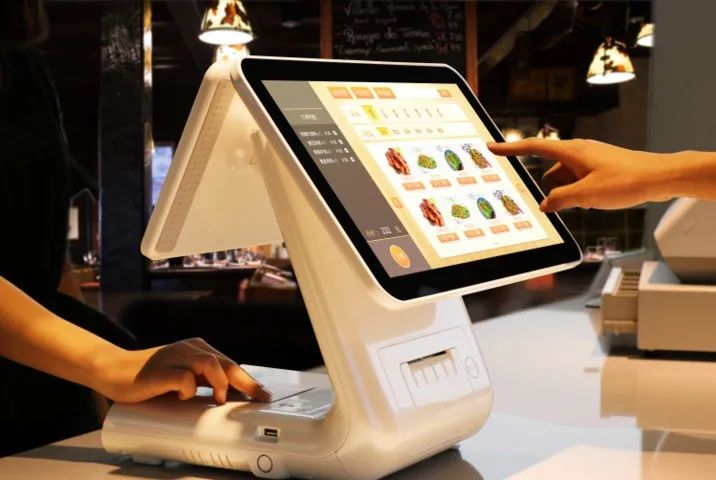

Dual-screen cashier machine is widely seen in our daily life, as along with the development of consumer mode, more and more consumer industries are using the no-cash method. So the dual-screen innovative cashier machine is just popping out.
Dual-screen cashier machine is a new type cashier device, the feature is with two screens, one for display the commodity information and price list, another is for payment information and operation interface. It allows customers to choose products, confirm orders, pay and other operations, to decrease the workload for the cashier and time cost, to improve the transaction efficiency and user experience.
Meanwhile, dual-screen design could provide fully, direct commodity information and transaction details, to let client finished the transaction at ease.
Besides, dual-screen smart cashier machine integrates with bar recognition, facial recognition etc. It improves the security and convenience for the transaction, to meet different requirements under different scenes. It could be widely applied to the market, convenience stores, restaurant etc, It could be an important method for the smart retailing, and it also the tendency for the future smart retailing.
Qiyang Technology provides the RK3399 Development Board based on Rockchip RK3399 CPU, it equipped with 2*Cortex-A72 +4*Cortex-A53, hexa-core 64-bit super strong CPU, with frequency reaches up to 1.8Ghz. It is of excellent performance, low consumption, to meet the demand for the computing and graphic processing for dual-screen all-in-one smart terminal.
Dual HD Screen With Same/Different Image
Onboard with LVDS,eDP, HDMI port, 2-ch signal output, it supports dual screen with same/ different image, to meet dual screen all-in-one cashier machine.With ‘master screen’+ ‘secondary screen’ to decrease the hardware cost.
Powerful Networking Telecommunication
Onboard with gigabit Ethernet, MINI-PCIE 4G port, and it supports 2.4Ghz/5Ghz dual band WIFI/BT 4.0, to provide various high speed network telecommunication selection. It ensures the smart cashier machine transmission speed and transaction processing, to improve the transaction efficiency and accuracy.
Rich Peripheral Interface

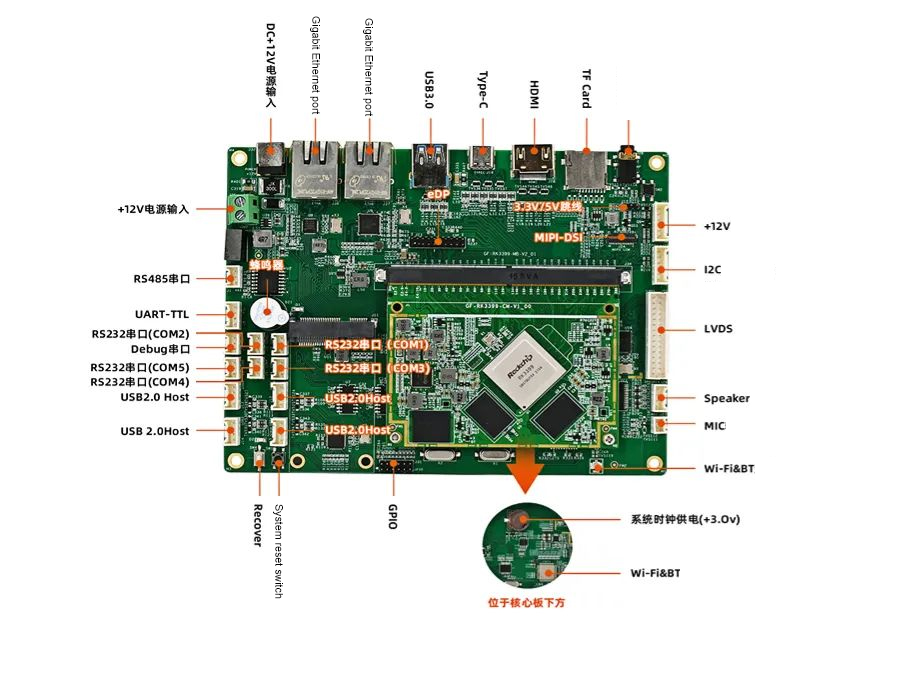

Onboard with 1-ch USB3.0, 1-ch Type-C high speed data port, 4-ch USB 2.0, 6-ch RS232,1-ch RS 485, I2C, GPIO, MIPI-CSI etc. It could connect to keyboard, QR scanner , scanner gun, printer, camera stably, to meet the smart cashier machine’s functional extension requirements.
Qiyang RK3399 Mainboard provides supports and variety of application scenario, it could meet the mostly technical requirements for the consumer display. In addition to the dual-screen smart cashier , it could also be applied to the smart traffic, media, adverting, finance etc. It could apply to the multi-functional, and multi industries applications.
