Qiyang Android Smart Express Cabinet Control Machine integrates IoT, intelligent recognition ,dynamic password, wireless communication ,etc.
To store or take expresses intelligently and centralized, designated place access, 24hours access, remote control or information issue, etc. It helps to improve the delivery efficiency and user access experience.
Android Smart Express Cabinet Control Machine interface description
Side A
|
Label |
Name |
Description |
|
1 |
PWR |
Power Indicator |
|
2 |
STATUS |
System Status Indicator |
|
3 |
Return |
Backspace Button |
|
4 |
Reset |
Reset Button |
|
5 |
TF |
Memory |
|
6 |
LAN |
10/100/1000Mbps Ethernet, with ACT/LINK indicator |
|
7 |
LAN |
10/100/1000Mbps Ethernet, with ACT/LINK indicator |
|
8 |
HDMI |
To connect HD liquid displayer |
|
9 |
OTG |
To connect PC |
|
10 |
USB5/USB6 |
USB2.0 |
|
11 |
USB3/USB4 |
USB2.0 |
|
12 |
USB1/USB2 |
USB2.0 |
|
13 |
MIC |
Std.3.5mm audio input |
|
14 |
RSPK |
Right channel audio output |
|
15 |
LSPK |
Left channel audio output |
|
16 |
Debug |
Debug Port |
|
17 |
3G |
3G communication |
|
18 |
GPS |
Used for orientation |

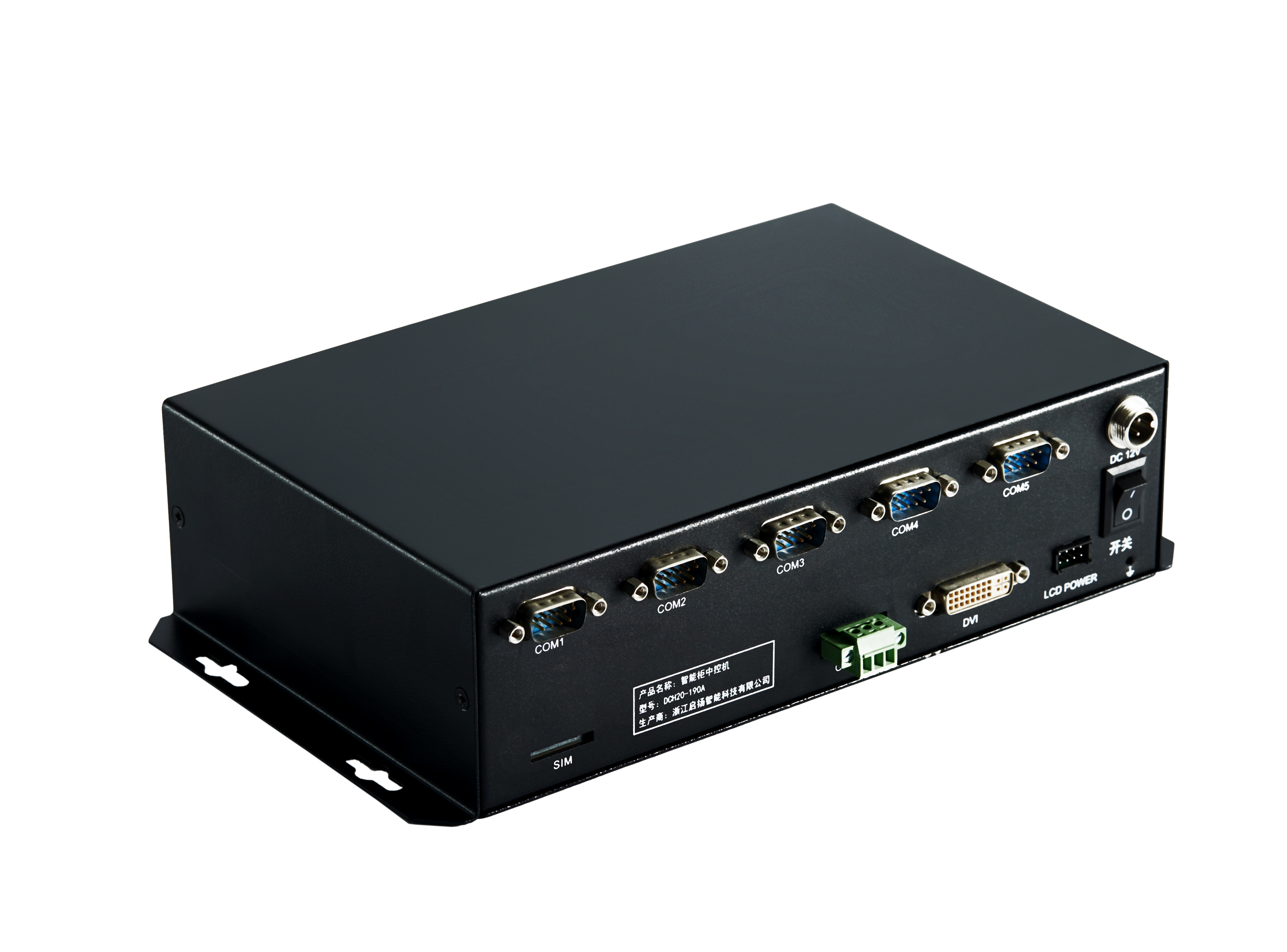

Side B
|
Label |
Name |
Description |
|
1 |
COM1 |
RS232,with flow control |
|
2 |
COM2 |
RS232,with flow control |
|
3 |
COM3 |
RS232 |
|
4 |
COM4 |
RS232 |
|
5 |
COM5 |
RS232 |
|
6 |
COM6 |
RS232 |
|
7 |
DC |
12V DC input |
|
8 |
SIM |
3G Card Socket |
|
9 |
RS485 |
RS485 |
|
10 |
RS485 |
RS485 |
|
11 |
DVI |
To connect HD screen |
|
12 |
LCD_POWER |
LCD backboard power |
|
13 |
Switch |
Switch |
|
14 |
GND |
To connect GND |
Technical Parameters
|
Case Name |
Android Smart Express Cabinet Control Machine |
|
CPU |
NXP i.MX6D |
|
Frequency |
1.0GHz |
|
RAM |
1GB DDR3 SDRAM |
|
FLASH |
8GB eMMC |
|
Network |
10/100/1000Mbps Ethernet |
|
USB |
6-ch USB |
|
UART |
7-ch, including 5-ch RS232, 1-ch RS485,1-ch debugging UART. |
|
Display |
1-ch DVI, to connect HD screen |
|
1-ch HDMI |
|
|
Extension Port |
1-ch SIM card socket |
|
Storage Port |
1-ch TF card |
|
Input Port |
1-ch MIC |
|
Output Port |
Left channel &Right channel audio output |

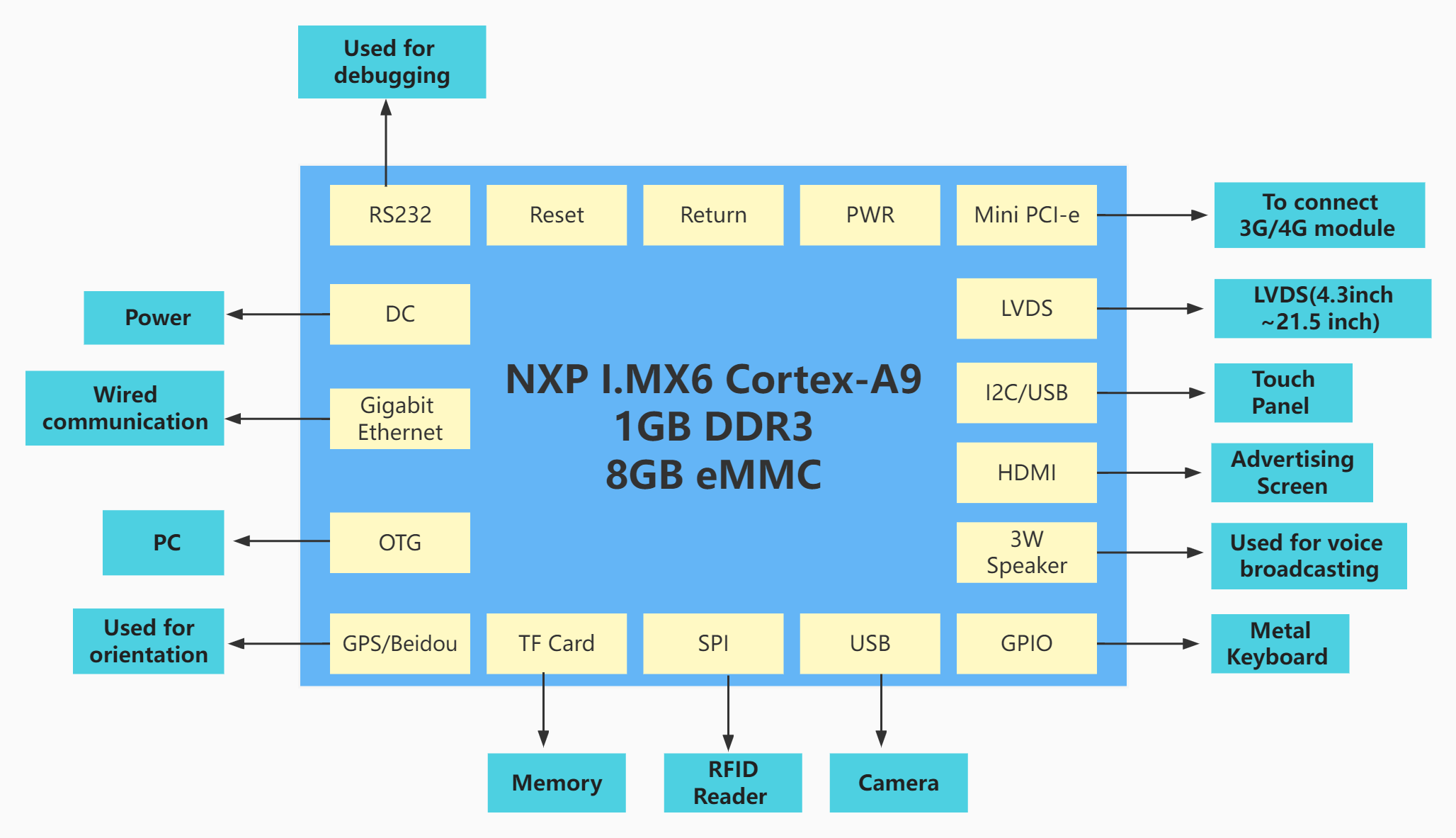

Program characteristics
Construct the intelligent express delivery system with PLC, to recognize, store, monitor parcels;
Send data collected through RFID, camera, and other sensors to controller, then after processed, it make the terminal operation by various sensors, including GSM, RFID ,camera surveillance, etc.
No need various graphic cards, it could achieve dual screen asynchronous ,video displaying , human machine interaction perfectly.
Wired/Wireless network melt, to ensure data real time feedback ,to reduce error probability;
GPS orientation, to search the target cabinet quickly.
Run Android, and third-party software, expand the cabinet function;
Remote upgrade, maintenance, remote fault judgement and recovery, remote application software upgrade, remote reboot;- Low cost, low consumption ,high integration ,comparing with X86 industrial panel .
