IoT technology and human intelligent technology development and application , it makes the security monitoring from a simple picture to an automatic recognition, it improves the video monitoring more intelligent , to improve the monitoring efficiency. Along with the implementing the smart building, smart transportation, smart community , to provide the complex monitoring requirements for the traffic ,bank, household, hall, building, factory, airport, stations.

It requires the monitoring system to achieve facial recognition, objective recognition, intrusion alarm, fire detection, passenger flow detection, etc. The high definition monitoring pictures, widely used camera position, more intelligent monitoring functions, it requires high performance for the NVR/XVR

Rockchip offers a suitable processor solution-RK3568 for security NVR/XVR use. Qiyang intelligence developed a IAC-RK3568-CM SOM and IAC-RK3568-Kit Evaluation Kit based on Rockchip RK3568 processor. RK3568 System On Module, and RK3568 Development Kit is a ARM Cortex-A55 architecture Quad-Core processor, it integrated with Mali-G52GPU, inbuilt with NPU RKNN, and powerful encoding and decoding ability; It supports rich extension ports, it supports security DVR NVR/XVR solutions.

RK3568 Features & Advantages on NVR/XVR solutions

 Strong Computing Ability

The SOM module RK3568 processor is based on Rockchip, it adopts Quad Core Cortex-A55 architecture, the frequency reaches up to 2.0Ghz, it integrated with Mali-G52 GPU, inbuilt isolated NPU, 1.0TOPS, it supports TensorFlow/ONNX/Darknet/Caffe/Keras, etc.

AI algorithm model could be imported with one click, and conversion, it could not only support NVR to be access, storage, forward, decoding , and also to support security AI function for facial recognition, intrusion alarm ,etc.

 Massive Video Stoarage

NVR is storage and forwarding part for a network video monitoring system , the core function is for video streaming storage and forwarding. RK3568 supports SATA3.0, it can connects to SSD, to store massive video data; RK3568 supports dual Gigabit Ethernet port, for NVR device , it supports one Ethernet to do centralized storage of front-end audio and video data.

Excellent Encoding and Decoding Capability

Decoding ability is the ability for NVR to convert the network video streaming to picture output. The better the NVR decoding ability, the more high-definition images can be viewed at the same time. RK3568 supports 4K H.264/H.265/VP9 HD decoding. It support 1080P@30fps video to decoding at same time. It supports encoding and decoding to reduce the monitoring pictures delay, to achieve real-time pictures and various replay.

Encoding ability is to encode the video signal, after encoding, the data could be saved at SSD or storage device.

RK3568 supports 1080P@60fps H.264/H.264 video encoding. It could be compatible with network camera, it supports videos for different pixels. H.265 video encoding could also reduce the video file’s size and guarantee the video quality.

Excellent Power Consumption Control Technology

RK3568 is with S-Boost power consumption technology, self-adaptive frequency could make the all-in-one device to reduce 20%, low consumption could reduce the chipset and circuit heating issue, not easy for system halted, it improved the hardware stability when the performance can’t meet.

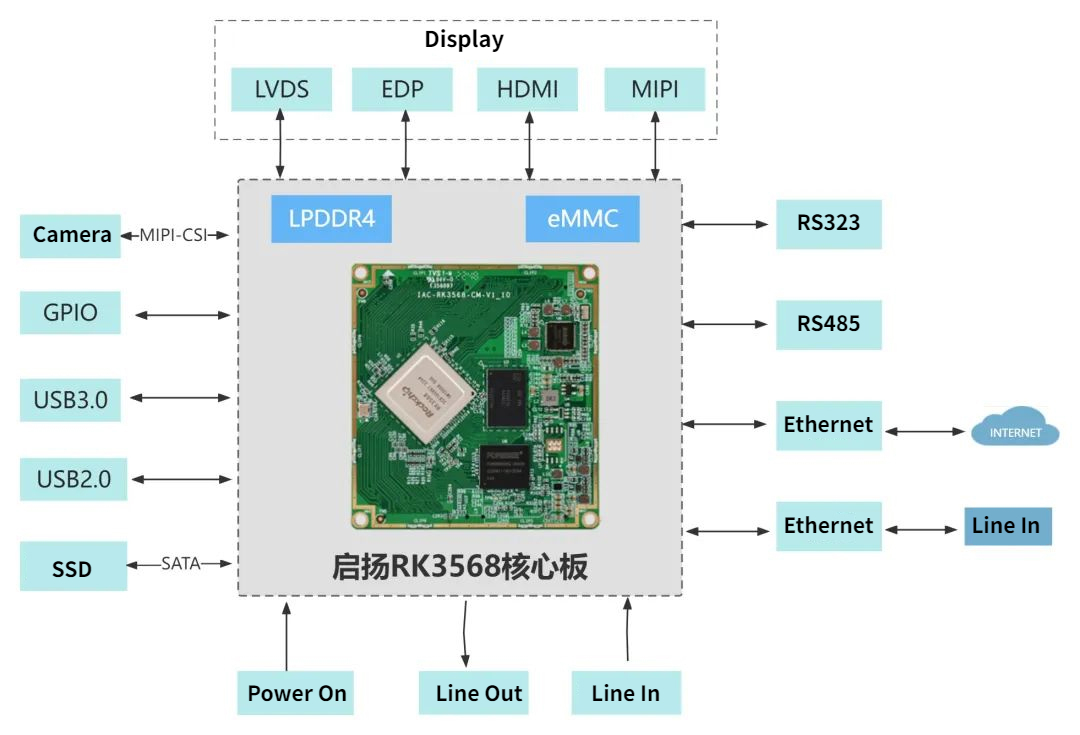

 Rich Connectors

RK3568 development kit support HDMI, EDP,LVDS, MIPI port, it support three-screen with same image, three-screen with different image; It also supports NVR display locally, to achieve localize viewing and management control; It supports USB,RS232,CAN to connect Alarm device, when it has abnormal status ,the system will alarm.

 Linux OS

RK3568 supports Linux OS, open OS, it benefits to customer for application developing and system operation.

More solutions base on RK3568 is in developing.
