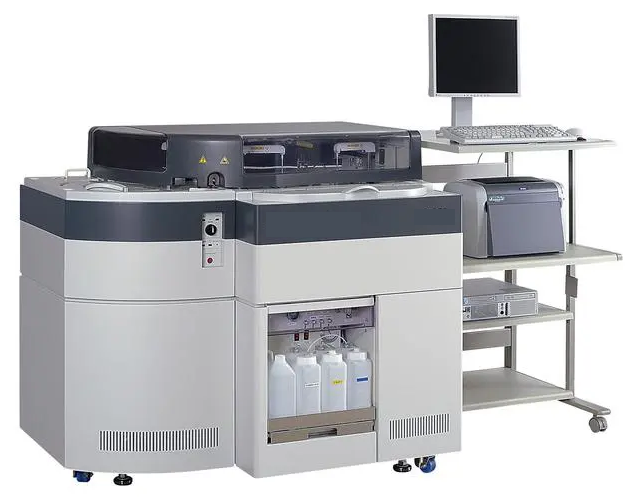

With the progress of technology and development of medical technical, As one of the important tools in the field of in vitro diagnosis, automatic biochemical analyzer has gradually attracted extensive attention, It has a wide range of applications in clinical medicine, and can be used to detect blood sugar, blood lipid, liver function, renal function and other biochemical indicators in blood, helping medical staff to discover and monitor the changes of diseases in time, guiding the formulation of treatment plans, and providing more convenient and efficient methods for medical services.

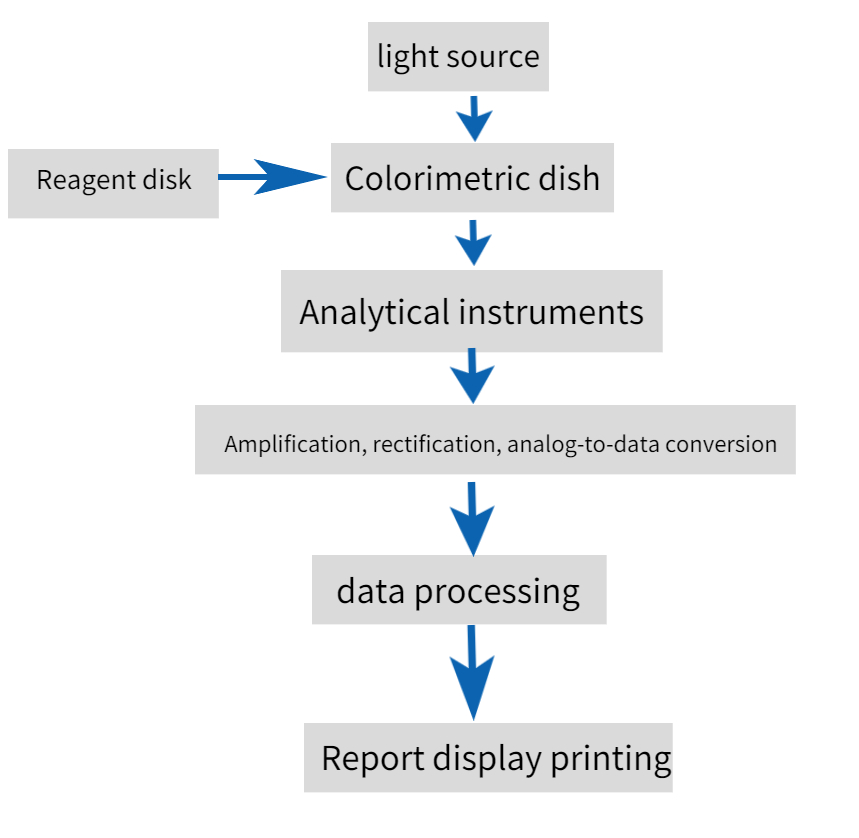

The automatic biochemical analyzer is mainly composed of kit, analytical instrument, sample processing system, electrochemical measurement system, data processing and display system. When the detection sample reacts with the reagent, the detection instrument converts the detected signal into digital signal, collects and records the data, and then processes the collected original data to obtain accurate detection results, and delivers the processed results to the display screen, connect the printer to print the test results in the form of a report.
The computer control part of automatic biochemical analyzer can be realized by ARM Main Control Board, and the NXP I core board designed and developed by Qiyang based on IAC-IMX8MP-CM. MX8M Plus processor can be applied to this equipment. It adopts a quad-core Cortex-A53 high-performance processor with a dominant frequency of 1.6GHz. The processor has built-in NPU and a computing power of up to 2.3TOPS. It provides fast and efficient data processing capabilities and provides faster and more accurate results for the full-automatic biochemical instrument in sample processing, data analysis and report generation.
The core board processor has powerful video processing capability, which not only supports 1080P60 H.265/4 and VP8/9 video decoding, but also supports 1080P60 and H.265/4 coding, meeting the requirements of automatic analyzer for image analysis and image display, realizing clearer and more detailed image display and improving the visualization of detection results.
Supports MIPI, LVDS, and HDMI display to meet the display needs of different users, and provides high-quality image and video output to display analysis results, Operation interfaces, and related data, ensuring the clarity and accuracy of the analysis results of operators.
The full-automatic biochemical instrument needs to run for a long time, carry out a large number of sample processing

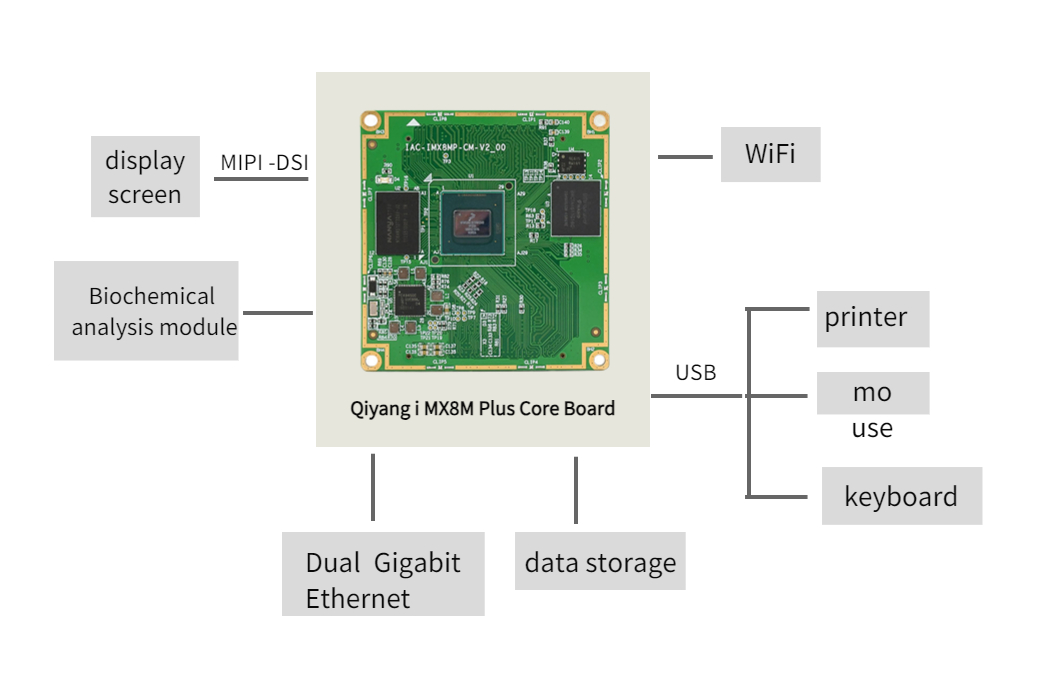

, analysis and data processing work, and has low power consumption I. MX8M Plus ARM processor is the preferred core hardware of automatic biochemical instrument, I. The MX8M Plus core board also has rich interface resources, providing multiple high-speed interfaces and commonly used extended interfaces, such as: dual Gigabit Ethernet ports, CAN-FD, USB3.0, UART, PCIE, SPI, I2C and other interfaces, to meet the needs of automatic biochemical analyzer to connect biochemical analysis module and other equipment (such as printer, mouse, keyboard, data storage, etc.), it provides a flexible and convenient way to connect and exchange data between devices.
The core board has industrial characteristics, fully considers medical application scenarios, and has a 15-year life cycle to provide reliable solutions for customers.
Automatic biochemical apparatus is widely used and plays an important role in medical treatment, scientific research, environmental monitoring and other fields, improving the accuracy and efficiency of detection and promoting the development of related fields. For more embedded solutions for medical devices, please continue to pay attention to Qiyang intelligence!
