With the acceleration and expansion of China's aging, more and more hot spots in the field of people's livelihood have attracted people's attention. The huge aging group will be a serious problem. The implementation of various social security policies and the expansion and upgrading of medical resources at all levels are effectively solving this problem.

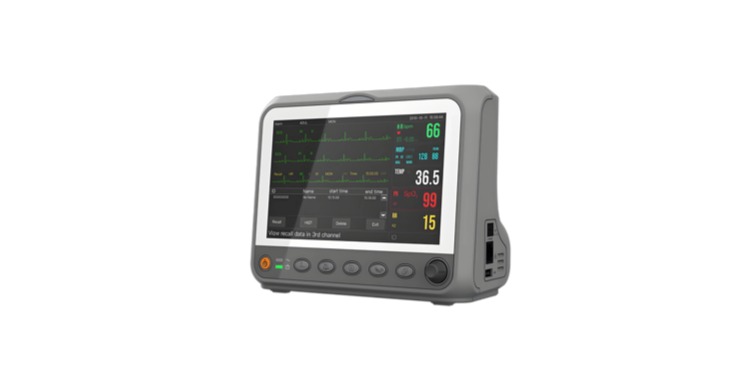

Under this background, medical ECG monitor, as an important medical equipment, plays a key role in the hospitalization of patients. Medical ECG monitor is a kind of precise medical instrument, which can collect ECG information of patients in real time, and complete functions such as storage, intelligent analysis and early warning, etc. It has the characteristics of accurate monitoring, high-definition display, touch screen control, simplicity and convenience, and is widely used in hospitals and other medical institutions.
Medical ECG monitor is mainly composed of electrodes, main engine, display screen, alarm system and recording and storage equipment. When the heart contracts and relaxes, myocardial cells will generate electrical signals, which are transmitted to the monitor host through electrodes. The host will amplify, filter and digitize the transmitted ECG signals to generate clear ECG waveform, and can directly print parameter reports through thermal printers. In addition, the host can also analyze the electrocardiogram waveform, calculate the heart rate and heart rhythm, judge whether there is abnormal situation according to the set threshold and algorithm, and send out corresponding alarm prompt.
Qiyang IAC-RK3568-CM core board has the advantages of high performance, low power consumption, stability, reliability and rich interfaces, and is suitable for medical monitor solutions.

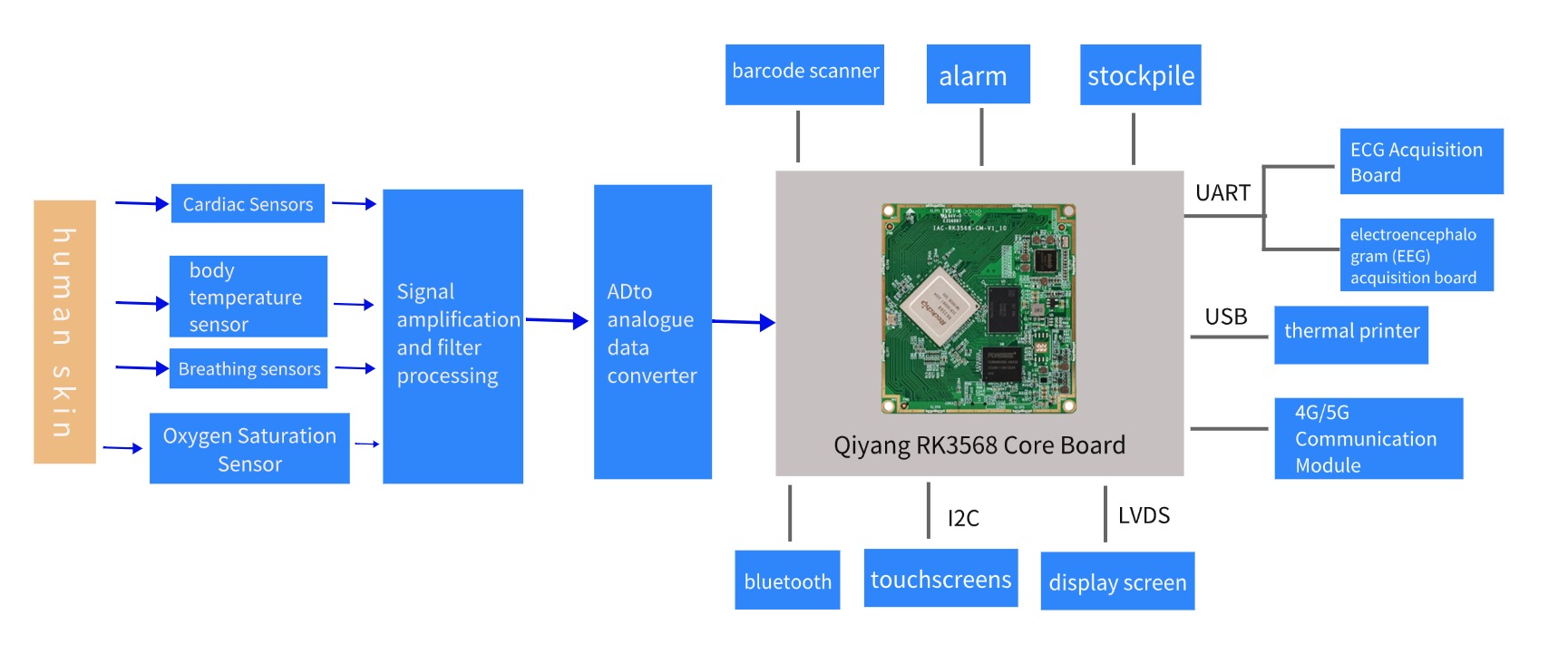

Medical ECG monitor solution
The core board of Qiyang RK3568 adopts a quad-core 64-bit Cortex-A55 CPU with a dominant frequency of up to 2.0GHz, providing powerful computing capability and stability for medical monitors, realizing efficient data acquisition, analysis and display functions, and improving the performance and efficiency of medical devices;
The configuration of 2GB LPDDR4 +8GB eMMC provides sufficient storage and computing capabilities for medical monitors, which can store various data of patients locally for a long time, meet the computing requirements of big data, and can also select different types of memory according to customer requirements;
It has multiple stable interfaces, such as USB, PCIE, SATA, UART, etc., which CAN meet the needs of medical ECG monitors to connect ECG acquisition board, EEG acquisition board, barcode scanner, thermal printer and other modules and equipment, and also supports RS232, RS485, CAN, MIPI and other interfaces, which is convenient for the expansion of various functional modules;
Supports various display interfaces such as MIPI-DSI, LVDS, EDP, HDMI, etc., provides high-quality image output and transmission speed required by medical monitors, meets the display function requirements of medical monitors, supports three-screen simultaneous display/three-screen differential display, and achieves good human-computer interaction experience;
Support Gigabit Ethernet, WiFi, 4G/5G, Bluetooth and other communication methods, provide a variety of data transmission methods, can transmit the radio wave and monitoring data to the remote monitoring center or hospital data center, realize remote monitoring and data storage, convenient medical staff for remote diagnosis and data analysis.
The rapid development of intelligent technology has promoted the development of medical equipment to the direction of intelligence. Qiyang intelligence not only provides intelligent solutions in medical ECG monitor equipment, but also provides intelligent solutions in medical equipment such as medical ultrasound diagnosis, endoscope, immune fluorescence analyzer, etc. For more intelligent medical solutions, please continue to pay attention to Qiyang intelligence!
