The intelligent physical examination all-in-one machine can automatically measure height, weight, fat mass, fat rate, basal metabolic rate, blood pressure, heart rate, body temperature, ECG, blood sugar, cholesterol, BMI, and other items. The measurement result data can be directly transmitted to the physical examination management system or mobile client, and the health system can be statistically analyzed to give health management suggestions. People can realize data exchange between multiple platforms through the network, which plays an important role in the monitoring and management of chronic patients and early disease screening and intervention. It is suitable for many scenarios such as hospitals, communities, disease control centers, physical examination centers, schools, nursing homes, and shopping malls.

Solution

QY-RK3288S is based on Rockchip RK3288 Cortex-A17 Quad-core processor, with the main frequency up to 1.8GHz. The high performance brings excellent data processing capability. With standard 2GB DDR3 and 8 GB EMMC storage capacity, the system runs more smoothly and flexibly. And the storage options can better match more application scenarios.

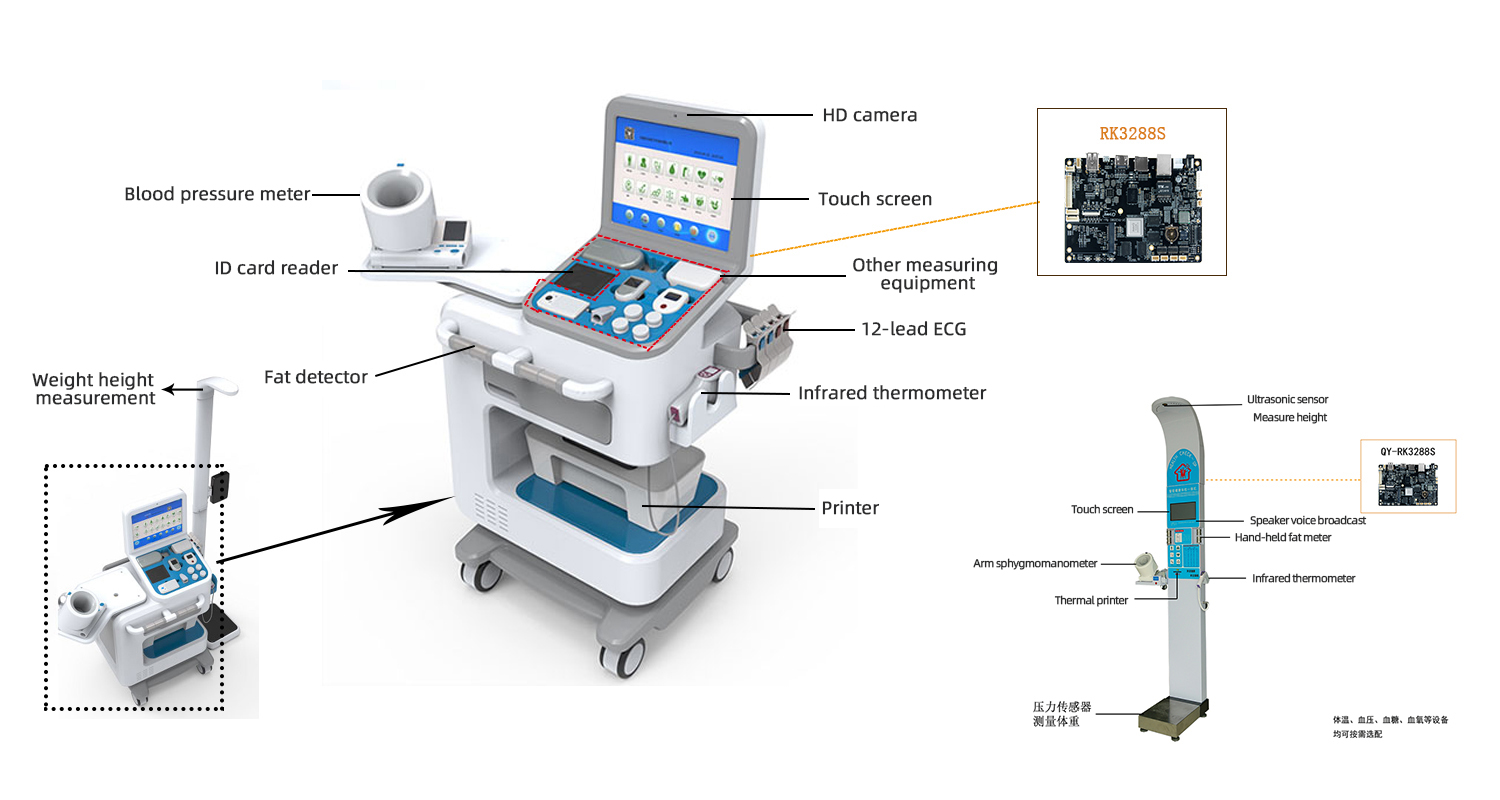

The physical examination machine adopts a touch screen display. QY-RK3288S supports a multi-size large screen, integrates Mali-T764 GPU, has super video encoding and decoding capabilities, and the output resolution reaches 3840*2160. Touch, voice, and video guiding of the detection process, to achieve good human-computer interaction.
The physical examination machine is equipped with a camera. QY-RK3288S can be combined with a facial recognition algorithm to realize face recognition function and establish patient health files. Onboard Wi-Fi, Bluetooth, Ethernet ports, multiple networking methods, and the Android operating system is convenient for user to enter the hospital system or remote health system. To realize cloud analysis of health data, remote doctor diagnosis, and other functions.

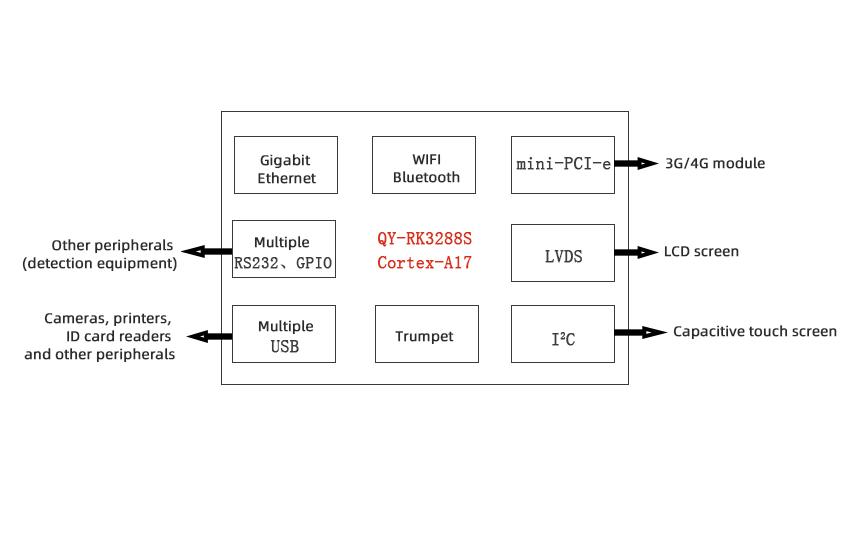

QY-RK3288S integrates MIPI, I2C, UART, HDMI, multi-channel serial port, USB2.0, and other interfaces, which can connect thermal printer equipment, and reports immediately after testing. Connecting with a variety of high-precision sensors to meet various testing equipment of intelligent physical examination all-in-one machine. All kinds of testing equipment are easy to operate, easy to use, fast in measurement, and high in measurement accuracy.
