Along with the development of the Industry 4.0 and the intelligent fabrication, the production process is gradually transforming to digitalization , MES system provides more efficient and flexible management solutions, it is an important management method for manufacturing industry. And EMS terminal as the core composition, it brings the convenience for the factories.
MES terminal machine is as the core equipment in workshop, it has different functions, including real-time surveillance, data acquisition, remote control, etc, it helps the factory to intelligent production. By deploying the MES terminal machine in workshop, it can monitor each data during production process, such as production process, device operation status, material flow, etc, to provide the information for the management. Furthermore, MES terminal machine also support remote control, to master the workshop’s operation , to improve production efficiency ,and lower the cost.
Qiyang’s recommendation
MES terminal machine is the core equipment for data acquisition, analysis, it equipped high-efficient data processing ability; It integrated multi functions, with better scalability; to provide friendly interactive HMI. Qiyang IMX93 SOM design based on high-performance design , it support multi-channel USB, dual Ethernet, dual CAN-FD, ect; MIPI-CSI, MIPI-DSI,LVDS multi media, to provide flexibly scalability, it provides the excellent applications in industrial HMI.
IMX93 processor integrates with 2*Cortex-A55+1*Cortex-M33, heterogeneous multi-core, it features excellent multitasking and real-time performance, to meet the requirements of real-time collection for MES terminal machine data (Current, Voltage, Temperature, etc). Analyzing these data, and faults, to support the management determine the device maintenance and upkeep.
It supports 2xGigabit Ethernet, including 1xGigabit Ethernet supports TSN, to provide accurate time asynchronization and real-time communication ability, to ensure data (equipment status , production process ,etc)be reported to MES system immediately. The administer can monitor the production process, to find and solve the problems timely; Meanwhile, it supports dual-band WIFI, to connect external 4G module, it supports flexible communication ability to upload and manage the production materials and data together.

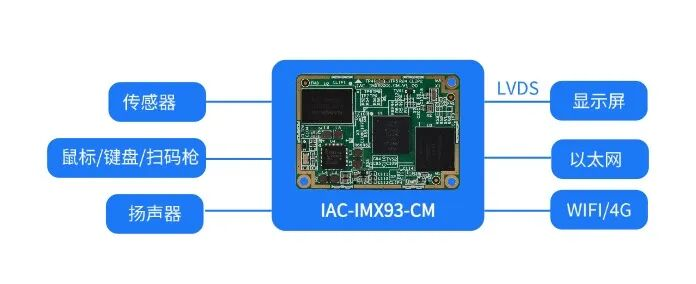

Onboard with MIPI_DSI, LVDS port, to provide friendly human machine interface, to meet the visualization requirements for MES terminal machine. It features with 2XCAN-FD, 3XUSB, RS232, RS485, etc. To connect sensor ,mouser ,keyboard ,scanner etc. to meet the different application scenarios.
MES terminal machine is usually required to run in a complex environments in factory , the SOM module is featuring with the industrial grade , that makes it run in the special environments normally, such as ,vibration ,dust, high or low temperature environments.
