In the field of energy storage, energy storage power station plays an important role, the application of energy storage power station technology throughout the power system power generation, transmission, distribution and use of electricity in all aspects. Realize the power system peak shaving and valley filling, renewable energy power generation fluctuation smoothing and tracking plan processing, efficient system frequency regulation, and increase the reliability of power supply.
However, as the construction of energy storage power systems develops more and more rapidly, energy storage power stations also face many problems: the lack of a unified management system, the difficulty of evaluating the system status of each connected device, the inflexibility of the energy storage control strategy, and the low safety performance.
Based on the problems faced by energy storage power stations, QI launched an integrated solution of "Industrial Ethernet Gateway + Human Machine Interaction" - Energy Storage Management Tablet, which supports the stable operation and efficient energy utilization of energy storage systems by connecting with components such as renewable energy systems, energy storage cloud platforms, storage systems and other access systems to achieve intelligent load management, energy optimization scheduling, fault self-diagnosis and other functions. By connecting with the renewable energy system, storage system, cloud platform, storage system and other access systems, it realizes intelligent load management, energy optimization scheduling, self-diagnosis of faults and other functions, which support the stable operation of the energy storage system and efficient energy utilization. Through the visualization interface and operation control function, the management personnel can intuitively understand the operation status of the energy storage system, centrally manage each access system, and adjust and control the energy storage system to ensure the safe and stable operation of the system.
Qiyang Energy Storage Management Panel adopts industrial-grade chip, quad-core ARM Cortex-A53+Cortex-M7 architecture, main frequency up to 1.6GHz, built-in NPU, computing power up to 2.3TOPS, which provides powerful data analysis capability and intelligent management for energy storage power stations, realizes local real-time monitoring, controlling and optimizing the operation of the storage system, and improves the stability and safety of the system operation. Stability and safety of system operation.
Equipped with a 10.1-inch HD touch screen with a resolution of up to 1280*800, it provides intuitive visualization management, flexible data analysis and operation, which brings convenience and efficiency to the management and operation of energy storage power stations.

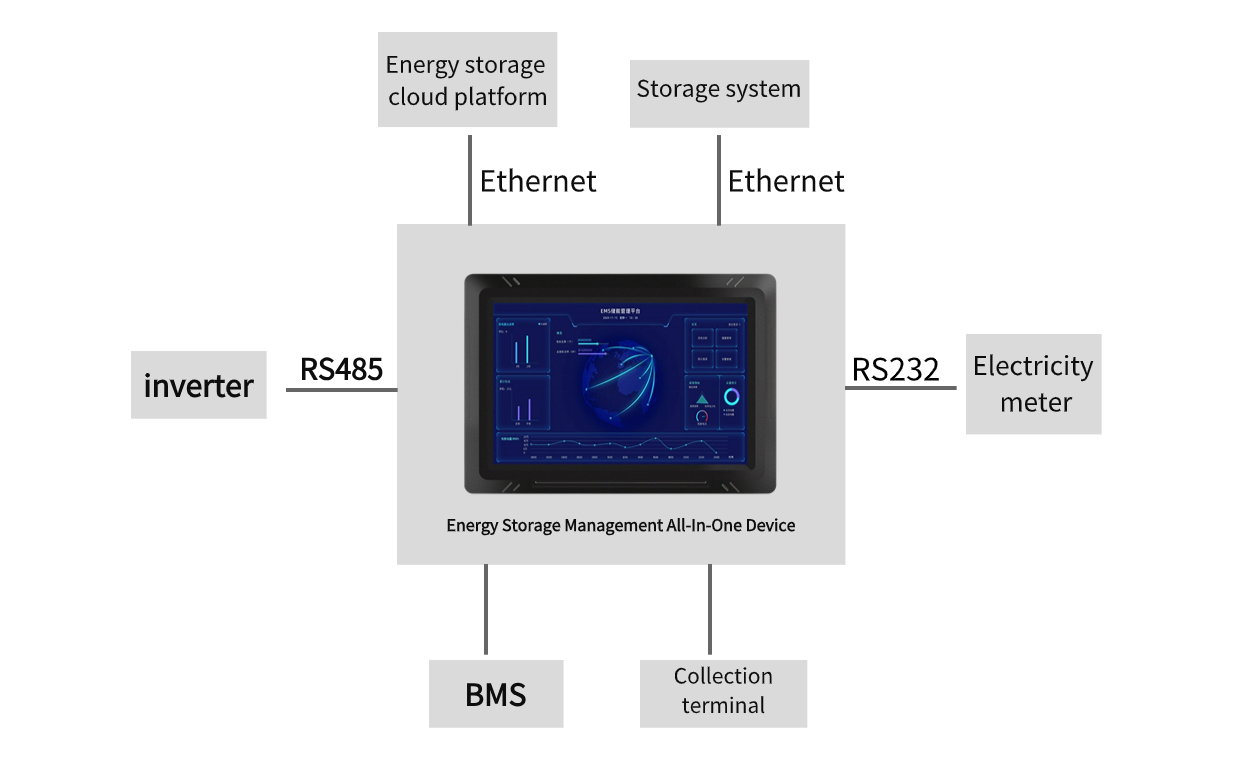

The energy storage management system needs to realize data transmission and communication between each component of the storage power station and external systems. Qiyang's energy storage management panel integrates dual Gigabit and dual 100 Mbps network ports for real-time monitoring and remote control, which facilitates the reception and sending of status information of each device, and the exchange of data with other systems to improve the operational efficiency and synergy of the entire storage power station;
Supporting 5-channel RS485, 1-channel RS232, 3-channel CAN, 16-channel DI+4-channel DO interfaces, it can connect and communicate with various devices and sensors, such as BMS, inverters, temperature sensors, etc., to realize data and information collection and control, which helps to find and solve equipment faults in time and provide a comprehensive understanding of the operation status of the energy storage power station, and at the same time, based on the collected data, it conducts analysis and calculation, and through an intelligent algorithmic mechanism, it realizes the optimal scheduling of energy in the energy storage power station, improving the energy utilization efficiency and the stability of system operation.
Energy storage stations are usually in complex environmental conditions, such as high and low temperatures, high humidity, strong winds, strong magnetic fields, etc. Qiyang's energy storage management panel has a high level of hardware protection and supports industrial temperatures ranging from -20 to +70°C, which can meet the application requirements of different energy storage scenarios and ensure the normal operation of the energy storage system.
